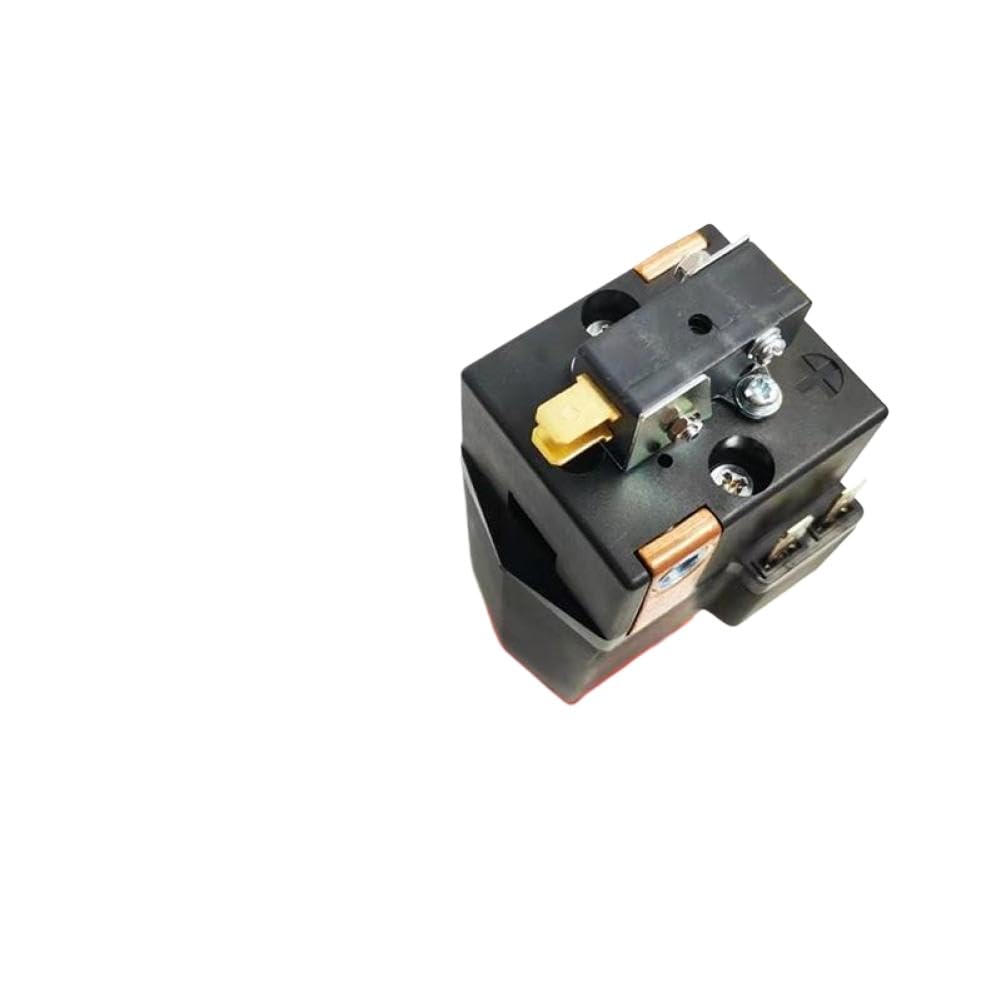

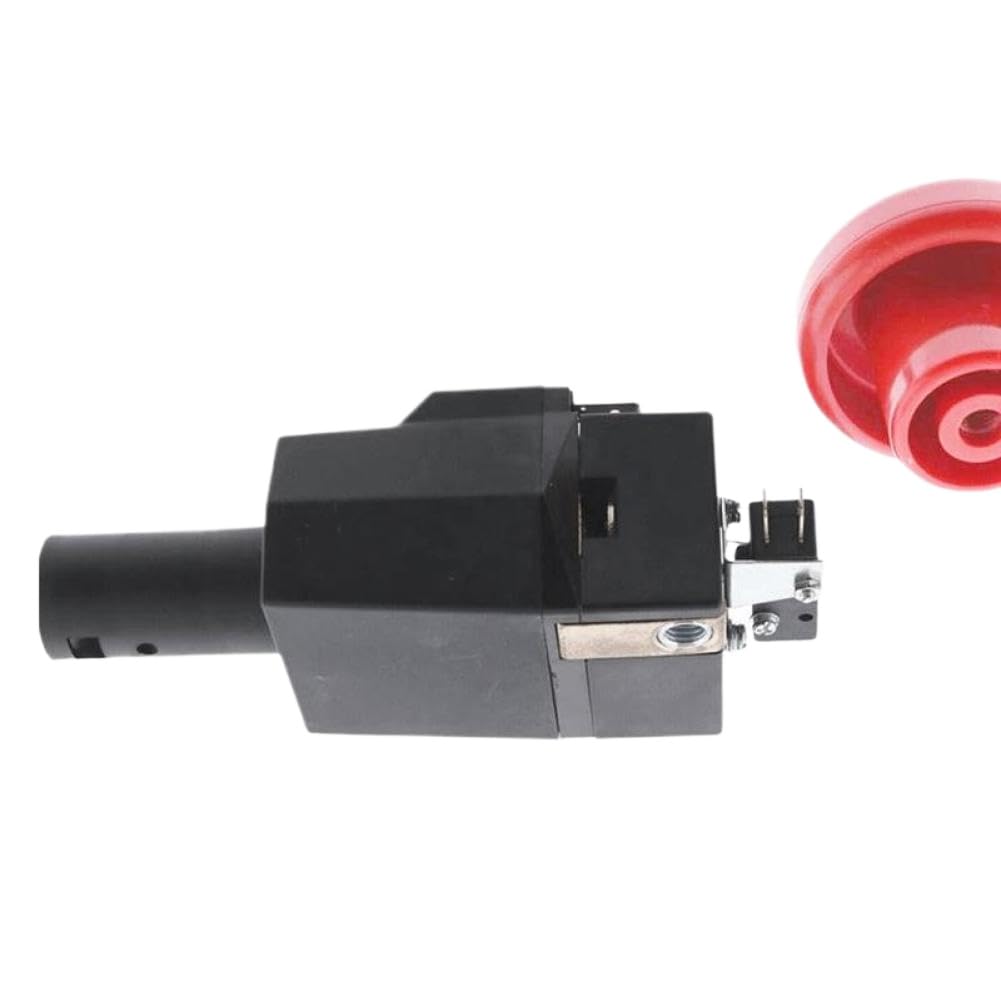

Replacement Switch for Haulotte 10 Compact and 10 Compact 12RTE Models – Part Numbers 4000349340 and 2440306180

This switch provides a rapid means of disconnecting batteries or other power supplies in the event of serious electrical faults.It combines the dual function of a manual disconnect and coil-operated line contactor.The design offers compact size and reduced installation costs, with electrical capacity suitable for small and medium-sized vehicles.While primarily intended for powered vehicles, it is also suitable for general power systems.Coil Voltage Available (Us): 6–240 V (rectifier board required for A.C.) Interrupted Thermal Current Rating (Ith): 125 A Intermittent Current Rating: 30% Duty: 230 A 40% Duty: 200 A 50% Duty: 175 A 60% Duty: 160 A 70% Duty: 150 A Rated Fault Current Breaking Capacity (Icn), 5 ms time constant (in accordance with UL583): With blowouts: 800 A at 96 V D.C.Without blowouts: 800 A at 48 V D.C.Rated Fault Current Breaking Capacity (Icn), resistive load (in accordance with UL508): With blowouts: not specified Without blowouts: not specified Maximum Recommended Voltages: With blowouts: not specified Without blowouts: 48 V Typical Voltage Drop per pole across contacts at 100 A: 40 mV Mechanical Life: greater than 3, 000, 000 cycles Colour: black and red Material: ABS Package Contents: 1 x switch

• Replacement switch designed for use with Haulotte 10 Compact and 10 Compact 12RTE aerial work platforms
• Provides switch and stop functionality to support safe and shutdown
• Includes components for routine maintenance and replacement as needed
• Compatible with part numbers 4000349340 and 2440306180 for verified fitment on specified Haulotte models
• Supports electrical control and mechanical systems in compact scissor lift applications
